1/2 Sq. Dr. Stud Bolt Setter M10 X 1.5 Length 49mm
1/2” DRIVE, STUD SETTER
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: | 1/2" |
| Drive Shape: | Square |
| Length: | 49mm |
| Type: | Impact Stud Bolt Setter |
| Output Size: | M10 x 1.5 |

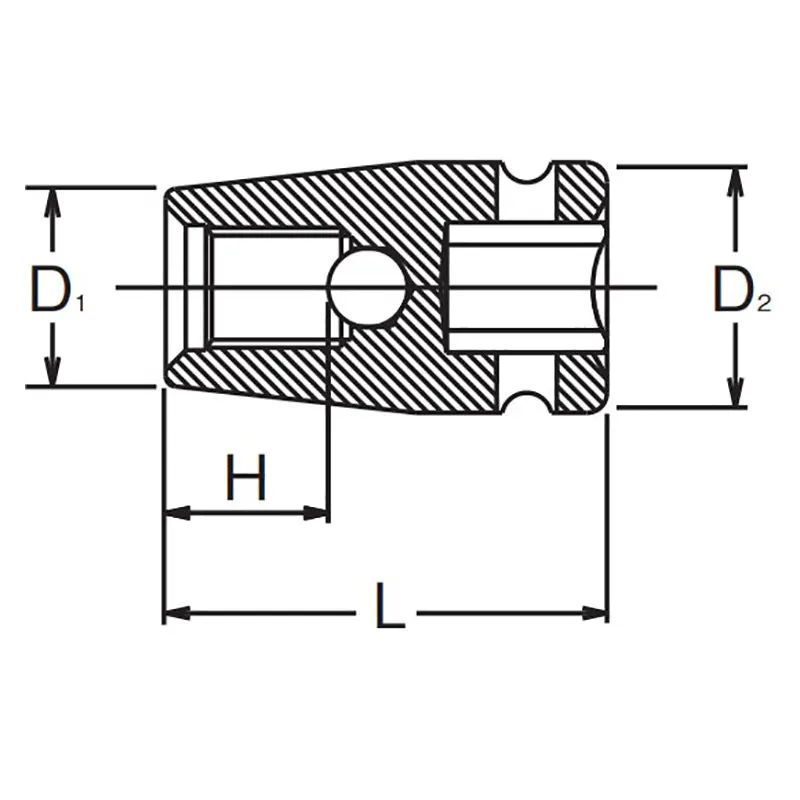

Product Dimension (Refer Line Drawing Image):
| D1 Size: | 17mm |
| D2 Size: | 25mm |
| H Size: | 18mm |
| L Size: | 49mm |
$32.03
